Product Description
- Brand Name: USAFEQLO
- Origin: CN(Origin)
- Certification: NONE
- Technology: Network
- Supported Operating Systems: Microsoft Windows 98
- Supported Operating Systems: Microsoft Windows ME
- Supported Operating Systems: Microsoft Windows 2000
- Supported Operating Systems: Microsoft Windows XP
- Supported Operating Systems: Microsoft Windows Vista
- Supported Operating Systems: Microsoft Windows 7
- Supported Operating Systems: Mac OS
- e-Cloud(P2P): Yes
- Video Output: 1VGA 1HDMI-compatible
- IP Mode: Static IP address
- Video Standard: NTSC
- Video Standard: PAL
- Hard Drive Size: 3.5”
- Network Protocol: SMTP
- Network Protocol: FTP
- Network Protocol: HTTP
- Network Protocol: DHCP
- Network Protocol: DNS
- Network Protocol: TCP/IP
- Network Protocol: UPNP
- Network Protocol: DDNS
- Network Protocol: PPPoE
- Network Interface: RJ45 10/100M
- Backup Type: Hard Drive
- Audio Output: None
- Video Input Interface: HDMI
- Supported Mobile Systems: Windows Mobile
- Supported Mobile Systems: iPhone OS
- Supported Mobile Systems: Android
- Two-way Audio: no
- Compression Format: H.265
- Compression Format: H.264
- Wireless Security: WEP
- Audio Compression Format: G711A
- Hard drive Interface Type: SATA
- Communication Interface: RS232
- Model Number: 1009/16/32R-KL/GL/OEM
- Alarm Action: FTP Photo
- Alarm Action: Email Photo
- Alarm Action: Local Alarm
- POE: None
- Audio Input: 1 Channel
- Video Input: 9/10/16/32 CHANNEL IP
- Main Processor: NOVA/ HISILICON 3536/XM3536
- HDD: up to 8TB(3.5ch HDD)
- Phone: Mobile phone, I-Pad, I-Phone, etc
- USB: 2* USB 2.0(Not support Keyboard)
- Power supply: 12V2A
- CMS: Support
- 3G Wifi: 9CH/16CH/32CH Support 7601 Wifi adapter
- Audio Out: 1CH
SKU Means:
Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera
Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
4K Super HD Resulution4K NVR provies crystal-clear images and videos with 3840x2160P HD resolution.
You will see all details that happens at your surroundings.
Product Material, Size
Plastic Case, built-in main Board
20x20x4CM
Package Information

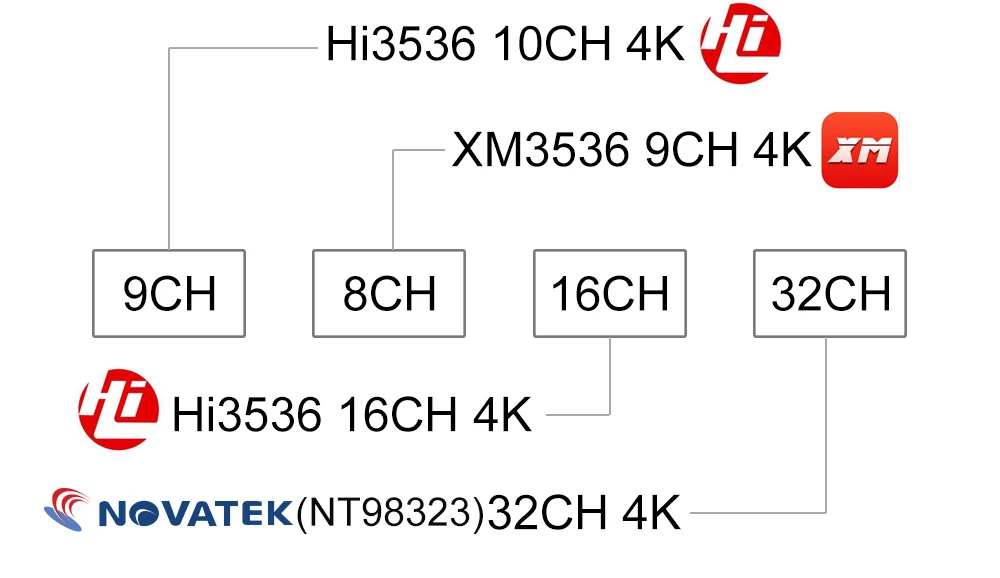

Description of applicable cameras
8CH XM Chip Support Max IP 4K/8MP
9CH Hisilicon Chip Support Max IP 4K/8MP
16CH Hisilicon Chip Support Max IP 4K/8MP
32CH Hisilicon Chip Support Max IP 4K/8MP
One PCS HDD Support
Support 3.5CH HDD
Orgional Newest HDD Recommend
TOSHIBA, Seagate, Western Digital HDD
Others brands HDD will not work.
Recommend use the Security HDD, not PC HDD
Suitable for multiple environments
Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.
Features :
- With H.265 High efficiency Video Compression
- With unique time screen in front of the panel, and displays recorder.
- Support Symbian S60V3/V5, Windows Mobile, Iphone, Android,, Blackberry and so on.
- Support 1*HDD( 8TB), with 2*USB2.0 for backup, burning, upgrading operation
- Stronger network service. support IE browse and CMS software
- Build-in org,dyndns.net,oray.net and myq-see.com free DDNS dynamic domain name
- Built-in own free DDNS Domain Name Server:
- With HDMI-Compatible, Support 4K Output, 8CH is 1080P Output
- Support P2P cloud functions
|
System
|
Main processor
|
8CH is XM3536(New board from XM,working temperature will be higher than Hi3536)
9CH/16CH are Hi3536
32CH is NOVA98323
|
|
Operating System
|
Embedded Linux
|
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
Preview
|
1/4/8/16
|
|
|
Video
|
Video input (IP)
|
8CH: 9*4K
9CH: 10*4K
16CH: 16*4K
32CH: 32CH*4K
|
|
Video compression
|
H.265/H.264
(H.265 Model must be the same Brand,if your camera is Reolink,HIK,Dahua and so on, will not work 265, only 264) |
|
|
Display quality
|
8CH: Max 1080P
9CH/16CH: Max 4K
32CH: Max 4K
|
|
|
Playback quality
|
8CH/9CH: 4K
16CH: 4K
32CH: 4K
|
|
|
Decode
|
4K/5MP /1080P
|
|
|
VR
|
Unsupport
|
|
|
Motion detection
|
Support(depend on camera)
|
|
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
|
Local payback
|
8CH/9CH : 4K
16CH : 4K
32CH: 4K
|
|
|
Record & playback
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|
Record storage
|
HDD,Network
|
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
|
|
Video output
|
1ch VGA,1ch HDMI-Compatible HD output
|
|
|
Audio I/O
|
0/0
|
|
|
External interface
|
3G/WIFI
|
8CH not support
9CH/16CH/32CH Support |
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
|
USB interface
|
2*USB2.0 ports(Not support the keyboard)
|
|
|
HDD
|
1* SATA(Up to 8TB for each disk)
|
|
|
ESATA
|
Not Support
|
|
|
Audio Out
|
1 Channel | |
|
Power supply
|
12V/2A(Not include)
|
|
|
Other
|
Power Consumption
|
<10W(Without HDD)
|
|
Work environment
|
Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
|
|
|
Dimension
|
L220*W250*H40mm
|
|
|
Weight
|
A total of about 920g
|
|
| Model | Not Fix Model name | |
|
Attactions:
|
8CH is Metal Case, 9CH,16CH,32CH are Plastic Case |
New Style Menu
